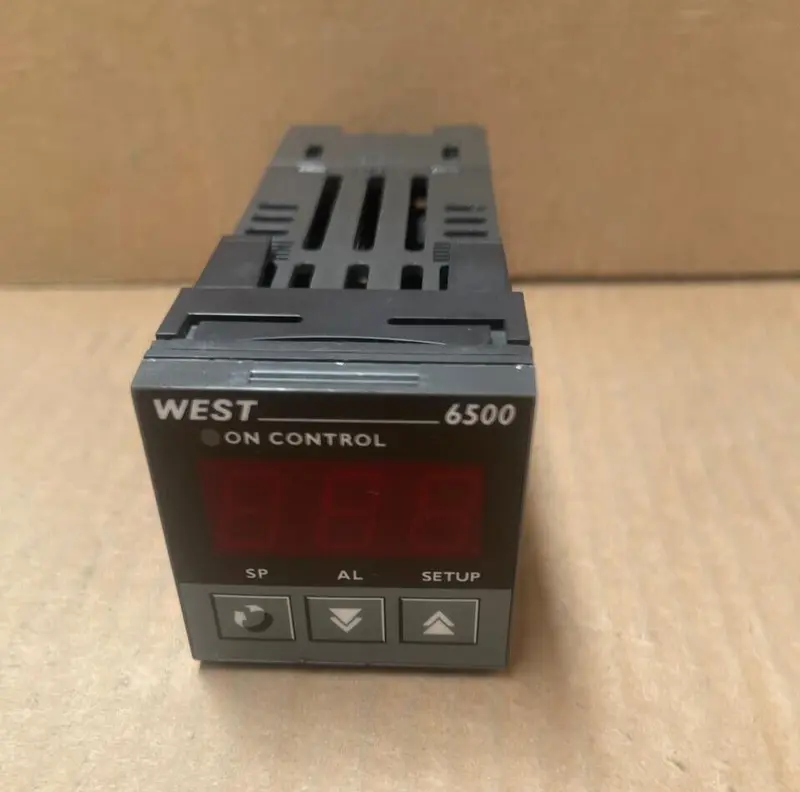

West Instruments – N6500 Z211000 – Single Loop Temperature Controller

The West Instruments N6500 Z211000 is a single loop temperature controller designed for precise temperature regulation in various industrial processes. This controller offers a simplified operator interface and automatic self-tuning on process start-up, making it user-friendly and efficient for maintaining desired temperature setpoints.

Key Features:

• User-Friendly Interface: Straightforward operator interface for easy setup and operation.

• Automatic Self-Tuning: Features automatic self-tuning on process start-up to optimize control parameters.

• Display: Large 3-digit display for high visibility and clear “on control” indication.

• Control Modes: Supports both PID and On/Off control modes.

• Setpoint Lock: Prevents unauthorized changes to the setpoint.

• Alarm Functionality: Optional process alarm with alarm lock feature.

• Adjustable PV Offset: Allows for calibration adjustments to the process variable.

Applications:

• Industrial temperature control processes

• Ovens and furnaces

• Plastic processing machinery

• Food processing equipment

Technical Specifications:

• Dimensions: 48 mm x 48 mm x 110 mm (HxWxD), 1/16 DIN size

• Input Types: Thermocouple or PT100

• Output Types: Relay, SSR

• Number of Outputs: Up to 2

• Control Types: PID, On/Off

• Number of Alarms: Up to 1

• Power Supply Options:

• 100–240 V AC

• 20–50 V AC / 22–65 V DC

• Panel Sealing: IP65
