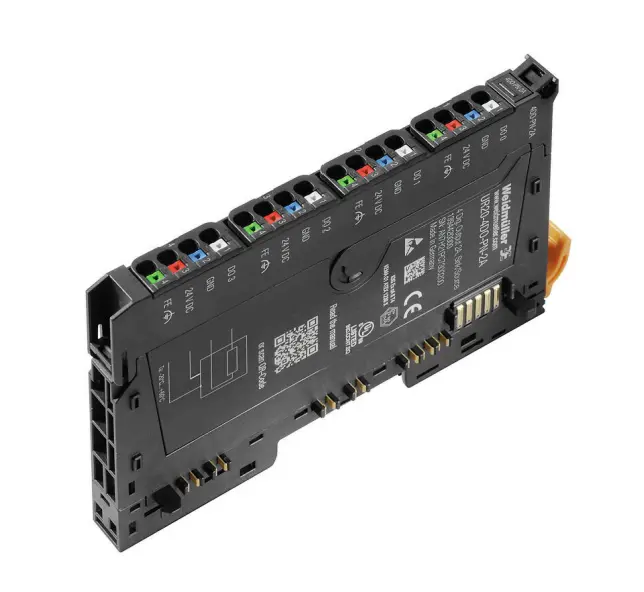

Weidmüller UR20-4DO-PN-2A — 4-channel digital output module, configurable P- or N-switching (PNP/NPN), 2 A per channel / 8 A per module, 24 V DC, short-circuit-proof with thermal cut-out, PUSH IN connection, 2-wire, 3-wire and 3-wire+FE, IP20, u-remote system, order no. 1394420000. (Lenze W560-C-2A-006). A higher-current variant of the standard UR20 digital output range, supporting up to 2 A per channel and 8 A total module current with full 100% simultaneity factor, suited to more demanding actuator loads including inductive, ohmic, and lamp loads.
Available in stock — ships within 3 days after payment.
Product overview
| Manufacturer | Weidmüller Interface GmbH & Co. KG |
| Type | UR20-4DO-PN-2A |
| Order number | 1394420000 |
| GTIN (EAN) | 4050118195408 |
| System reference | Lenze W560-C-2A-006 |
| Product type | Remote I/O digital output module, IP20 |
| Number of outputs | 4 |
| Switching type | Configurable P- or N-switching (PNP / NPN) |
| Output current per channel | 2 A max. |
| Output current per module | 8 A max. (100% simultaneity factor) |
| Leakage current | < 0.1 mA |
| Load types | Ohmic, inductive (DC13), lamp load (12 W) |
| Switching frequency (resistive / lamp) | 1 kHz (min. 47 Ω / 12 W lamp load) |
| Switching frequency (inductive DC13) | 2 Hz |
| Short-circuit protection | Yes — thermal cut-out |
| Response time of protective circuit | < 100 µs (current limiting) |
| Max. response time, high | 100 µs |
| Max. response time, low | 250 µs |
| Switch-off energy (inductive) | < 150 mJ per channel |
| Feedback-free | Yes |
| Actuator connection | 2-wire, 3-wire, 3-wire + FE |
| Supply voltage | 24 V DC +20% / −15%, via system bus |
| Connection type | PUSH IN |
| Wire cross-section | 0.14 mm² to 1.5 mm² (solid and stranded) |
| Galvanic isolation | 500 V DC between current paths |
| Module diagnosis | Yes |
| Mounting | DIN rail TS 35 |
| Dimensions (W × H × D) | 11.5 × 120 × 76 mm |
| Net weight | 85 g |
| Operating temperature | −20°C to +60°C |
| Storage temperature | −40°C to +85°C |
| Approvals | CE, cULus (E141197), ATEX, IECEx, DNV, ClassNK, KR, RoHS |
| Condition | New — in original packaging (OVP) |
Applications
- Control of higher-current decentralised actuators, contactors, and solenoid valves requiring up to 2 A per channel
- PLC and fieldbus automation architectures using Weidmüller u-remote system infrastructure
- Applications requiring configurable P- or N-switching in a single module for flexible wiring topologies
- Drive and machine control systems where full 100% channel simultaneity at 8 A total module current is needed
