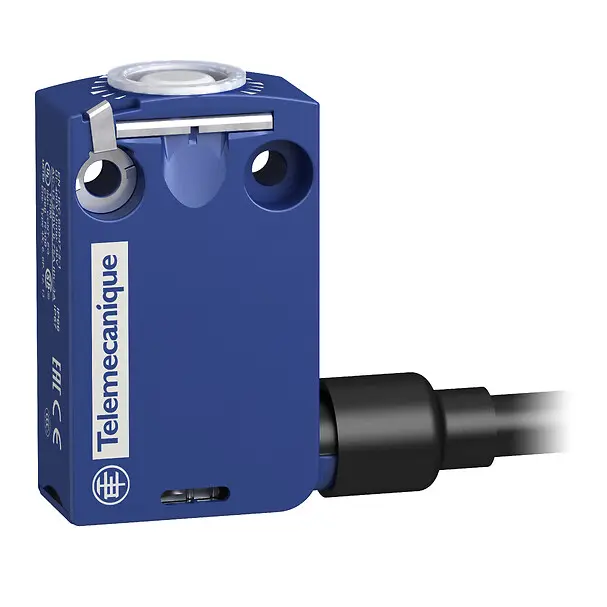

Limit switch body, Limit switches XC Standard, ZCMD, 2NC+2 NO, silver, snap action, connection, 1 m
Technische Daten
| Hauptmerkmale | |
|---|---|
| Range of product | Telemecanique Limit switches XC Standard |
| Series name | Standard format |
| Product or component type | Limit switch body |
| Device short name | ZCMD |
| Design | Miniature |
| Body type | Fixed |
| Body material | Zamak |
| Contacts type and composition | 2 NC + 2 NO |
| Contact operation | Snap action |
| Ergänzende Merkmale | |
| Product compatibility | XCMD |
| Electrical connection | Removable cable |
| Cable composition | 9 x 0.34 mm² |
| Contacts insulation form | Zb |
| Wire insulation material | PvR |
| Contacts material | Silver plated contacts |
| Positive opening | With |
| Resistance across terminals | 25 mOhm conforming to IEC 60255-7 category 3 |
Verpackungseinheiten
| Unit type of package 1 | PCE |
| Number of units in package 1 | 1 |
| Package 1 height | 5.1 CENTIMETER |
| Package 1 width | 1.6 CENTIMETER |
| Package 1 length | 3 CENTIMETER |
| Package 1 weight | 0.16 KILOGRAM |
| Unit type of package 2 | S03 |
| Number of units in package 2 | 60 |
| Package 2 height | 30 CENTIMETER |
| Package 2 width | 30 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Package 2 weight | 10.16 KILOGRAM |
| Unit type of package 3 | BAG |
| Number of units in package 3 | 1 |
| Package 3 height | 2.5 CENTIMETER |
| Package 3 width | 20 CENTIMETER |
| Package 3 length | 16 CENTIMETER |
| Package 3 weight | 0.151 KILOGRAM |
| Indivisible sale quantity | 1 |
