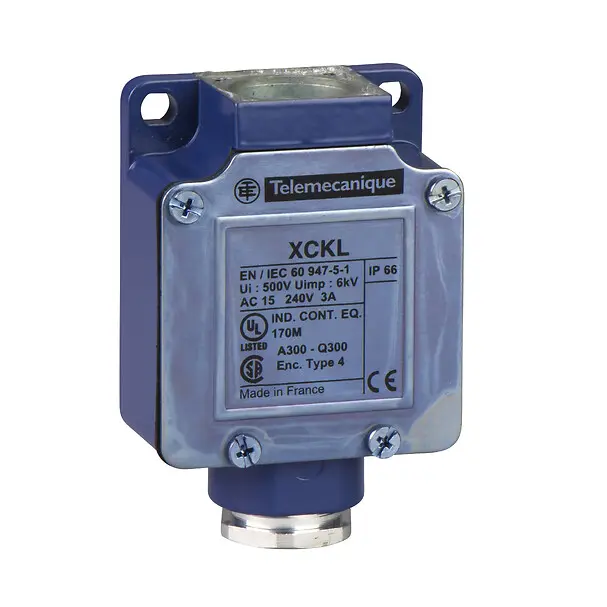

Limit switch body, Limit switches XC Standard, ZCKL, 2NC+1 NO, slow break, Cable gland include
Technische Daten
| Hauptmerkmale | |
|---|---|
| Range of product | Telemecanique Limit switches XC Standard |
| Series name | Standard format |
| Product or component type | Limit switch body |
| Device short name | ZCKL |
| Body type | Fixed |
| Product compatibility | XCKL |
| Body material | Metal |
| Cable entry | 1 tapped entry for Pg 13.5 cable gland (included) |
| Contacts type and composition | 2 NC + 1 NO |
| Contact operation | Slow-break, break before make |
| Contacts material | Silver plated contacts |
| Ergänzende Merkmale | |
| Electrical connection | Screw-clamp terminals, clamping capacity: 1 x 0.34…2 x 0.75 mm² |
| Positive opening | With |
| Resistance across terminals | 0.25 mOhm conforming to IEC 60255-7 category 3 |
| Terminals description ISO n°1 | (13-14)NO (21-22)NC |
| Umgebung | |
| IP degree of protection | IP66 |
| IK degree of protection | IK05 |
| Environmental characteristic | Temperature variation |
Verpackungseinheiten
| Unit type of package 1 | PCE |
| Number of units in package 1 | 1 |
| Package 1 height | 3.3 CENTIMETER |
| Package 1 width | 8 CENTIMETER |
| Package 1 length | 6.5 CENTIMETER |
| Package 1 weight | 0.231 KILOGRAM |
| Unit type of package 2 | CAR |
| Number of units in package 2 | 1 |
| Package 2 height | 3.3 CENTIMETER |
| Package 2 width | 6.5 CENTIMETER |
| Package 2 length | 8 CENTIMETER |
| Package 2 weight | 0.231 KILOGRAM |
| Indivisible sale quantity | 1 |
