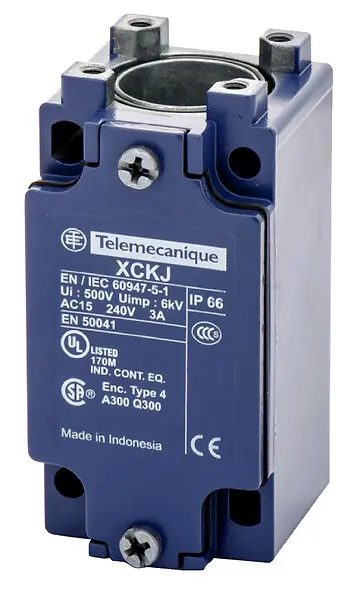

Limit switch body, Limit switches XC Standard, corps d interrupteur de position ZCKJ 1 o plus 1 f bornes
Technische Daten
| Hauptmerkmale | |
|---|---|
| Range of product | Telemecanique Limit switches XC Standard |
| Series name | Standard format |
| Product or component type | Limit switch body |
| Device short name | ZCKJ |
| Body type | Fixed |
| Product compatibility | XCKJ |
| Body material | Metal |
| Contacts type and composition | 1 NC + 1 NO |
| Contact operation | Snap action |
| Contacts material | Silver plated contacts |
| Ergänzende Merkmale | |
| Electrical connection | Male connector M12, 5 pins |
| Positive opening | With |
| Resistance across terminals | 0.25 mOhm conforming to IEC 60255-7 category 3 |
| Terminals description ISO n°1 | (11-12)NC (13-14)NO (21-22)NC (23-24)NO |
| Umgebung | |
| IP degree of protection | IP66 |
| IK degree of protection | IK07 |
| Environmental characteristic | High temperature |
Verpackungseinheiten
| Unit type of package 1 | PCE |
| Number of units in package 1 | 1 |
| Package 1 height | 4 CENTIMETER |
| Package 1 width | 13 CENTIMETER |
| Package 1 length | 6.8 CENTIMETER |
| Package 1 weight | 0.332 KILOGRAM |
| Package 2 height | 15 CENTIMETER |
| Package 2 width | 30 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Package 2 weight | 3.881 KILOGRAM |
| Indivisible sale quantity | 1 |
