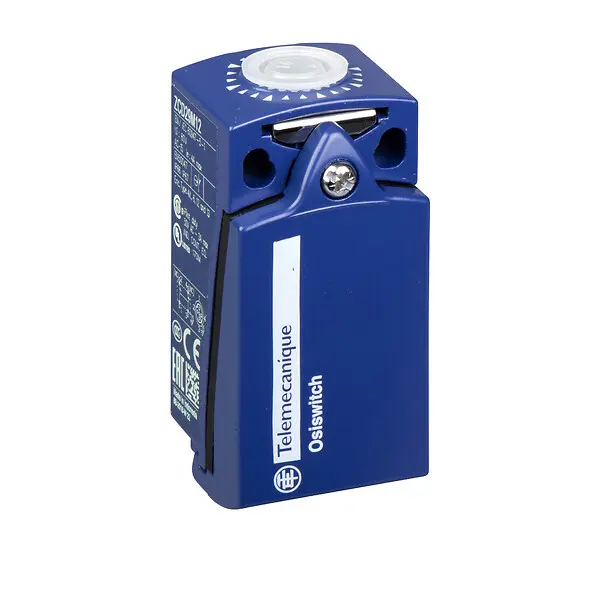

Limit switch body, Limit switches XC Standard, metal 1 NO 1 NO, slwa gold flashed c
Technische Daten
| Hauptmerkmale | |
|---|---|
| Range of product | Telemecanique Limit switches XC Standard |
| Series name | Standard compact |
| Product or component type | Limit switch body |
| Device short name | ZCD |
| Design | Compact |
| Body type | Fixed |
| Body material | Zamak |
| Contacts type and composition | 1 NO + 1 NO |
| Contact operation | Snap action |
| Ergänzende Merkmale | |
| Electrical connection | Screw-clamp terminals, clamping capacity: 1 x 0.34…2 x 0.75 mm² |
| Contacts insulation form | Zb |
| Contacts material | Silver plated contacts |
| Positive opening | With |
| Contact code designation | R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to IEC 60947-5-1 appendix A, C300, AC-15 (Ue = 240 V), Ie = 0.75 A conforming to IEC 60947-5-1 appendix A |
| Umgebung | |
| Product compatibility | XCKD |
Verpackungseinheiten
| Unit type of package 1 | PCE |
| Number of units in package 1 | 1 |
| Package 1 height | 7.5 CENTIMETER |
| Package 1 width | 4.1 CENTIMETER |
| Package 1 length | 4.1 CENTIMETER |
| Package 1 weight | 0.14 KILOGRAM |
| Unit type of package 2 | S01 |
| Number of units in package 2 | 40 |
| Package 2 height | 15 CENTIMETER |
| Package 2 width | 15 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Package 2 weight | 5.825 KILOGRAM |
| Unit type of package 3 | CAR |
| Number of units in package 3 | 1 |
| Package 3 height | 7.5 CENTIMETER |
| Package 3 width | 4.1 CENTIMETER |
| Package 3 length | 4.1 CENTIMETER |
| Package 3 weight | 0.14 KILOGRAM |
| Indivisible sale quantity | 1 |
