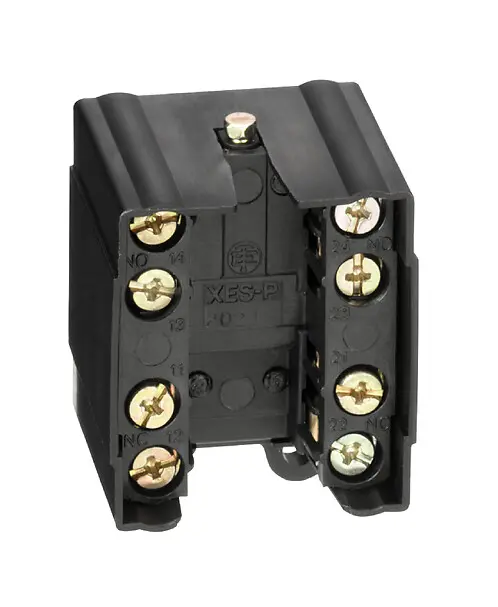

Limit switch contact block, Limit switches XC Standard, XESP, 2 C/O snap action, staggered, silver plated
Technische Daten
| Hauptmerkmale | |
|---|---|
| Range of product | Telemecanique Limit switches XC Standard |
| Device short name | XESP |
| Product compatibility | XC2J |
| Product or component type | Limit switch contact block |
| Series name | Standard format |
| Contacts type and composition | 2 C/O |
| Electrical connection | Screw-clamp terminals, clamping capacity: 1 x 0.75…2 x 1.5 mm² |
| Contact operation | Snap action, staggered |
| Contacts material | Silver plated contacts |
| Positive opening | Without |
| Contacts insulation form | Za |
| Ergänzende Merkmale | |
| Contact code designation | A300, AC-15 (Ue = 240 V), Ie = 3 A conforming to IEC 60947-5-1 appendix A, Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to IEC 60947-5-1 appendix A |
| Resistance across terminals | 25 mOhm conforming to IEC 60255-7 category 3 |
| Compatibility code | XESP |
Verpackungseinheiten
| Unit type of package 1 | PCE |
| Number of units in package 1 | 1 |
| Package 1 height | 3.2 CENTIMETER |
| Package 1 width | 3.5 CENTIMETER |
| Package 1 length | 4.6 CENTIMETER |
| Package 1 weight | 0.037 KILOGRAM |
| Unit type of package 2 | S01 |
| Number of units in package 2 | 1 |
| Package 2 height | 15 CENTIMETER |
| Package 2 width | 15 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Package 2 weight | 0.225 KILOGRAM |
| Unit type of package 3 | BAG |
| Number of units in package 3 | 1 |
| Package 3 height | 3.2 CENTIMETER |
| Package 3 width | 3.5 CENTIMETER |
| Package 3 length | 4.5 CENTIMETER |
| Package 3 weight | 0.037 KILOGRAM |
| Indivisible sale quantity | 1 |
