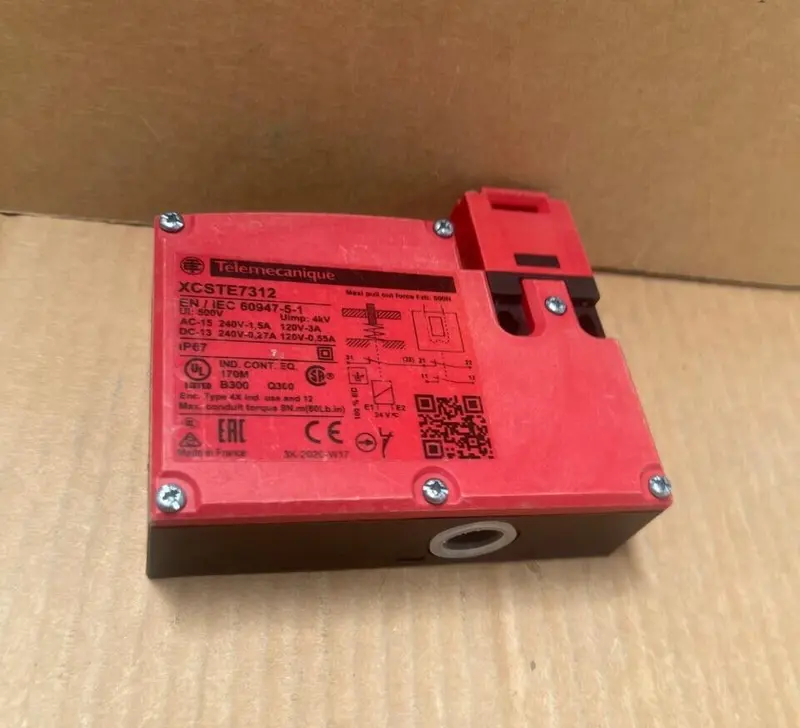

The Telemecanique Sensors XCSTE7312 is a safety interlock switch designed to monitor the position of protective guards and ensure that machinery operates only when safety conditions are met. This switch features a key-operated turret head and is constructed from durable plastic materials, making it suitable for various industrial safety applications.
Key Features:
• Contact Configuration: 2 Normally Closed (NC) slow-break contacts, providing reliable switching operations.
• Locking Mechanism: Equipped with a solenoid that locks upon de-energization and unlocks upon energization, enhancing safety by preventing accidental access.
• Cable Entry: Includes one entry tapped for M16 x 1.5, facilitating straightforward wiring and installation.
• Rated Supply Voltage: Operates at 24 V AC/DC with a tolerance of -20% to +10%, accommodating common industrial power supplies.
• Robust Design: Meets IP67 protection standards, ensuring resistance to dust and water ingress for reliable performance in challenging environments.
Applications:
• Monitoring and controlling access to hazardous machine areas.
• Ensuring machinery operates only when safety guards are properly positioned.
• Industrial automation systems requiring safety interlock mechanisms.
Technical Specifications:
• Product Range: Telemecanique Safety Switches XCS
• Material: Plastic housing
• Head Type: Key-operated turret head
• Contact Operation: Slow-break, break-before-make
• Electrical Connection: Terminal with clamping capacity for wires ranging from 0.5 to 1.5 mm²
• Operating Temperature Range: -25°C to +60°C (-13°F to +140°F)
• Mechanical Durability: Rated for up to 1,000,000 operating cycles
• Standards Compliance: Conforms to IEC 60204-1
