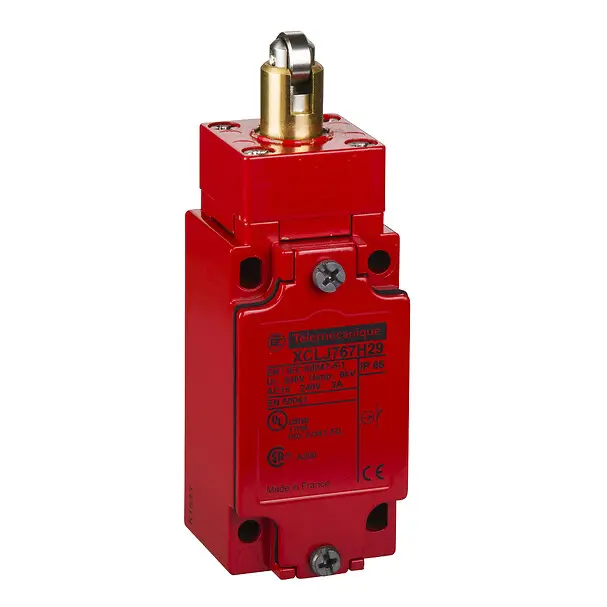

Limit switch, Limit switches XC Standard, XCLJ, red body steel, roller plunger, NC and NC snap contacts
Technische Daten
| Hauptmerkmale | |
|---|---|
| Range of product | Telemecanique Limit switches XC Standard |
| Series name | Standard format |
| Product or component type | Limit switch |
| Device short name | XCLJ |
| Sensor design | Form C conforming to CENELEC EN 50041 |
| Body type | Fixed |
| Head type | Plunger head |
| Ergänzende Merkmale | |
| Material | Metal |
| Body material | Zamak |
| Head material | Zamak |
| Fixing mode | By the body |
| Movement of operating head | Linear |
| Type of operator | Spring return roller plunger metal |
| Cable entry | 1 entry tapped for Pg 13.5 cable gland, cable outer diameter: 9-12 mm |
| Type of approach | Lateral approach, 1 or 2 programmable direction |
| Switch actuation | By 30° cam |
| Electrical connection | Screw-clamp terminals, clamping capacity: 1 x 0.5…2 x 2.5 mm² |
| Contacts type and composition | 1 NC + 1 NO |
| Contacts insulation form | Zb |
| Contact operation | Snap action |
| Positive opening | With |
| Resistance across terminals | 25 MOhm conforming to IEC 60255-7 category 3 |
| Terminals description ISO n°1 | (13-14)NO (21-22)NC |
| Umgebung | |
| Shock resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance | 25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IK degree of protection | IK07 conforming to IEC 62262 |
| Overvoltage category | Class I conforming to IEC 61140 |
| Standards | CENELEC EN 50041 IEC 60204-1 IEC 60947-5-1 |
Verpackungseinheiten
| Unit type of package 1 | PCE |
| Number of units in package 1 | 1 |
| Package 1 height | 12.6 CENTIMETER |
| Package 1 width | 6.8 CENTIMETER |
| Package 1 length | 4.1 CENTIMETER |
| Package 1 weight | 0.49 KILOGRAM |
| Package 2 height | 3.5 CENTIMETER |
| Package 2 width | 3.5 CENTIMETER |
| Package 2 length | 2.8 CENTIMETER |
| Package 2 weight | 37 KILOGRAM |
| Indivisible sale quantity | 1 |
