Vishay TCLT1102 Optocoupler — Phototransistor Output, 5000 VRMS Isolation, 63–125% CTR, SOP-6L5 SMD Package, Full Reel of 3000 pcs, Date Code 2320. Single-channel NPN phototransistor output optocoupler with extra low coupling capacitance (0.3 pF typ.) and 80 V collector-emitter voltage. Suitable for switchmode power supplies, microprocessor interfaces, and computer peripheral isolation.
Available in stock — ships within 24 hours after payment.

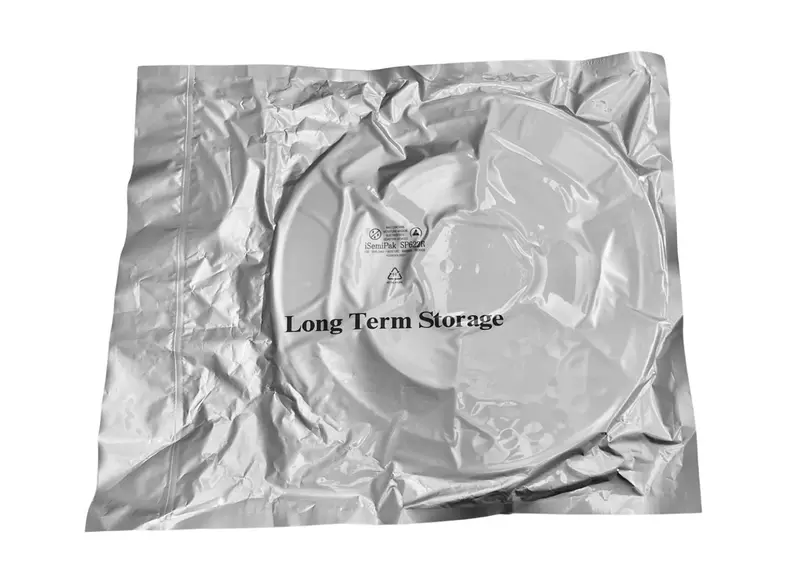

Please note the image is for representation purposes only
Product overview
| Part number | TCLT1102 |
| Manufacturer | Vishay Semiconductors |
| Date code | 2320 |
| Quantity | Full reel — 3000 pcs |
| Product type | Optocoupler / optoisolator |
| Output type | NPN phototransistor |
| Channels | 1 |
| Current transfer ratio (CTR) | 63–125% @ VCE = 5 V, IF = 10 mA |
| Isolation voltage | 5000 VRMS |
| Max. output voltage (VCEO) | 80 V |
| Max. output current (IC) | 50 mA |
| Total power dissipation | 250 mW |
| Coupling capacitance | 0.3 pF typ. @ 1 MHz |
| Package | SOP-6L5 (SMD, half pitch, long mini-flat) |
| Operating temperature | −55 °C to +100 °C |
| Agency approvals | UL, cUL, VDE (DIN EN 60747-5-5), BSI, FIMKO, CQC |
| Compliance | RoHS compliant |
| Condition | New — original sealed packaging (OVP) |
Applications
- Switchmode power supplies requiring high-voltage isolation
- Microprocessor and computer peripheral interface circuits
- Industrial control systems with galvanic isolation requirements
- Signal isolation in motor drives, inverters, and power converters
Shipping
- Ships within 24 hours after payment
- Secure packaging for safe delivery
- Free delivery within Germany
Warranty & compliance
- 12-month warranty included
- Product is fully compliant with EU industry standards
- VAT invoice included with every order
(GPSR (EU) 2023/988): Contact us for Manufacturer/EU Responsible Party product safety contact details.
