Susumu / Cyntec PCMB042T-2R2MS — SMD Power Choke Coil (Unshielded), 2.2 µH, 3 A Rated / 5 A Saturation, 58 mΩ Max DCR, ±20% — Reel of 2000 pcs. Low-profile surface-mount power inductor from Susumu’s PCMB series, designed for space-saving DC-DC converter and power supply applications. Features low loss and high saturation current in a compact 4.15 × 4.0 × 1.8 mm footprint. New and sealed in original packaging.
Available in stock — ships within 3 days after payment.

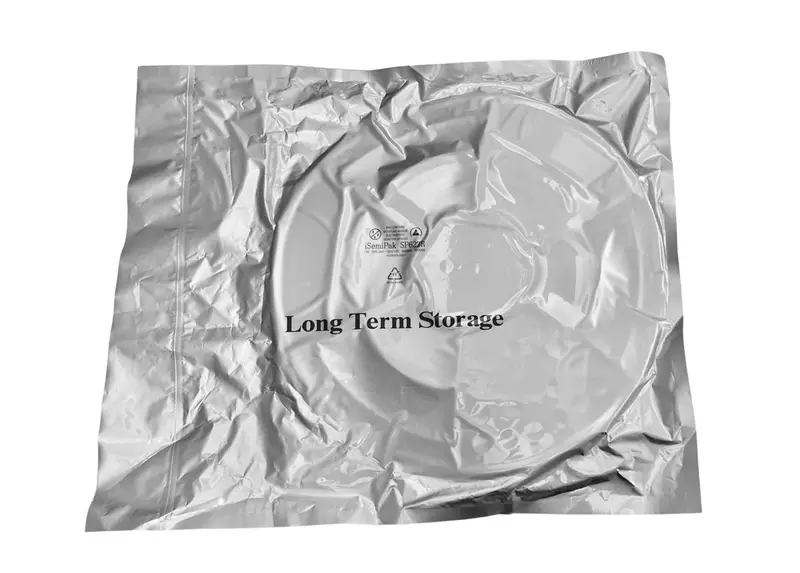

Please note the image is for representation purposes only
Product overview
| Part number | PCMB042T-2R2MS |
| Manufacturer | Susumu / Cyntec |
| Product type | SMD power choke coil — unshielded, PCB mounting |
| Series | PCMB042T (PCMB series) |
| Inductance | 2.2 µH (code 2R2) |
| Inductance tolerance | ±20% (code M) |
| Rated (DC) current | 3 A (temperature rise of 40 °C) |
| Saturation current | 5 A (inductance drop of 30%) |
| DC resistance (max.) | 58 mΩ |
| DC resistance (typical) | 52 mΩ |
| Body dimensions (L × W × T) | 4.15 × 4.0 × 1.8 mm |
| Mounting type | SMD (surface mount) |
| Shielding | Unshielded |
| Packaging | Reel — 2000 pcs |
| Date code | 20220612 |
| Compliance | RoHS-compliant, lead-free, halogen-free |
| Condition | New — sealed in original packaging (OVP) |
Applications
- DC-DC converters and switching power supplies in PCs, servers, and mobile devices
- Power filtering and energy storage in flat screen TVs and consumer electronics
- Point-of-load regulation circuits requiring compact, low-profile inductors
- High-current power rails where board space is constrained
Shipping
- Ships within 3 days after payment
- Secure packaging for safe delivery
- Free delivery within Germany
Warranty & compliance
- 12-month warranty included
- Product is fully compliant with EU industry standards
- VAT invoice included with every order
(GPSR (EU) 2023/988): Contact us for Manufacturer/EU Responsible Party product safety contact details.
