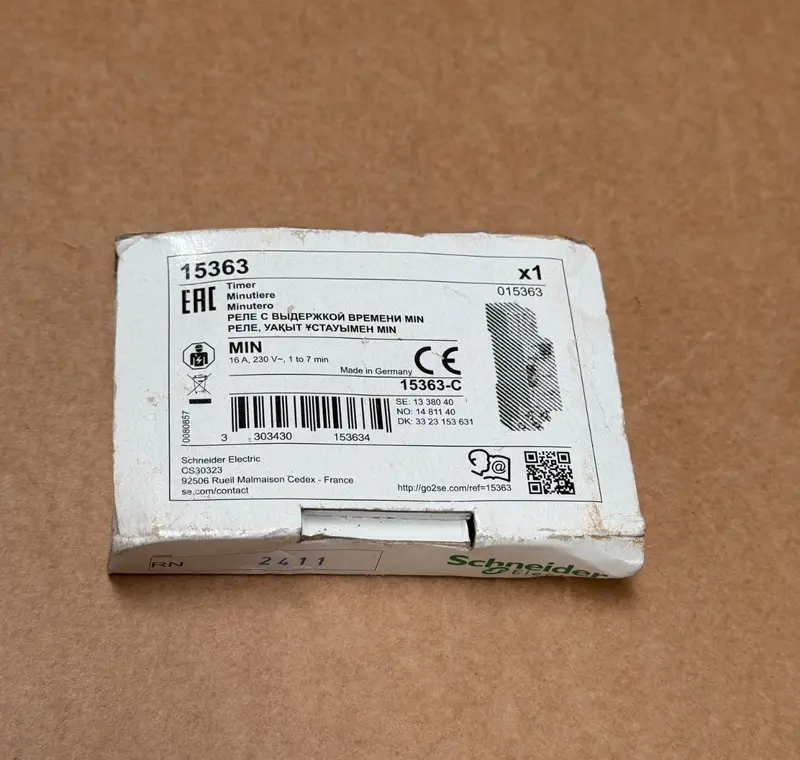

The Schneider Electric 15363 (Acti9 MIN series) is a DIN-rail mounted delay-off timer designed for lighting and automation control. It closes on push-button activation and opens after a user-adjustable delay of 1 to 7 minutes. Perfect for stairwell lighting, timed equipment control, and energy-saving applications.
Key Features:
-
Part Number: 15363 MIN
-
Supply Voltage: 230 VAC, 50/60 Hz
-
Time Range: Adjustable from 1 to 7 minutes via front knob ()
-
Contact Configuration: SPST normally-open relay, rated 16 A (10 A @ cos φ=0.6)
-
Connection: 3- or 4-wire selectable terminal configuration
-
Manual Override: Toggle switch for “Auto” or permanent “On”
-
Mounting: 18 mm (2 module) slim DIN-rail housing, IP20
-
Dimensions: 83 × 18 × 68 mm, weight ~0.085 kg
