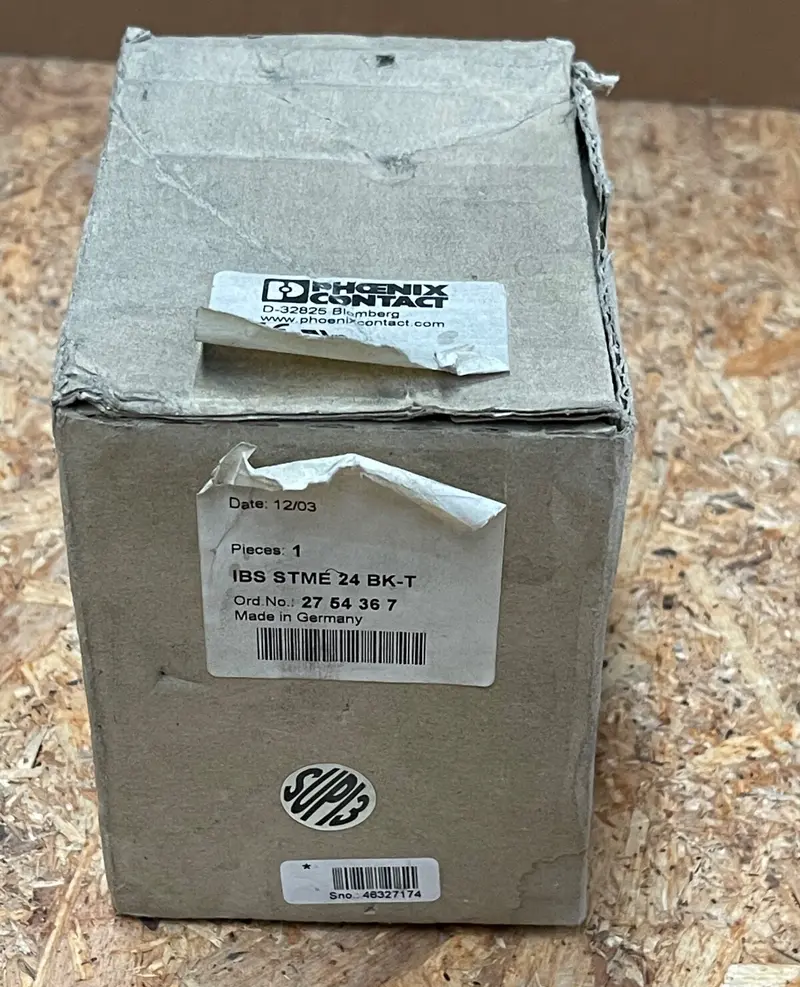

Phoenix Contact – 2754367 – IBS STME 24 BK‑T Replacement Electronics Module

The Phoenix Contact 2754367 is a smart terminal repair module (IBS STME 24 BK‑T) designed to replace the electronics portion of the INTERBUS ST terminal for 24 V DC applications. Ideal for refurbishing or updating legacy field I/O systems, this modular unit restores INTERBUS communications and functionality.

Key Features:

• Model: IBS STME 24 BK‑T, Phoenix Contact PN 2754367

• Function: Replacement electronics module for IB ST (ZF) 24 BK‑T smart terminal

• Bus Protocol: INTERBUS, 500 kbps data transmission

• Connectivity:

  • 9-pin D‑SUB for remote bus

  • ST local bus connector

• Power & I/O Connections: 24 V DC terminals with screw connection; stripping length 8 mm

• Mounting & Protection: DIN‑rail mountable; IP20 rated housing

• Weight: Approx. 351 g

• Origin: Manufactured in Germany; complies with connection standards and EMC class A
