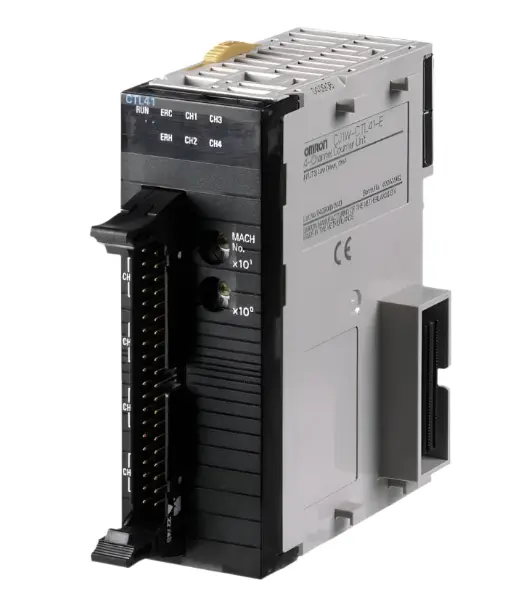

Omron CJ1W-CTL41-E 4-Channel High-speed Counter Unit — 100 kHz, 32-bit Counter, A/B/Z Incremental Encoder Input, Linear and Circular Mode, 32 Comparison Values, Interrupt to PLC CPU, for CJ1-series PLCs. Connects up to 4 incremental encoders or high-speed pulse-train inputs to any CJ1 PLC system. Counter data is transferred to the CPU every scan cycle as four 32-bit values. Internal comparison of counter values with up to 8 preset values (or 4 ranges) per channel enables sub-millisecond interrupt response. Counter properties can be reconfigured on-the-fly from the PLC program. Up to 24 units can be controlled by a single CJ1 CPU.
Available in stock — ships within 3 days after payment.
Product overview
| Part number | CJ1W-CTL41-E |
| Product type | 4-channel high-speed counter unit — CJ1-series Special I/O Unit |
| Number of encoder channels | 4 |
| Max. input frequency | 100 kHz per channel (up to 400,000 counts/s across all 4 channels) |
| Counter resolution | 32-bit per channel |
| Supported input signals | A/B/Z quadrature, up/down pulse, pulse + direction; 24 VDC open collector or line driver (RS-422) |
| Counter modes | Linear and circular — selectable per channel |
| Comparison values | 32 total (8 preset values or 4 ranges per channel) |
| Interrupt to CPU | Yes — sub-millisecond response on comparison match |
| On-the-fly reconfiguration | Yes — ranges, comparison values, hysteresis via PLC program commands |
| Error log | Internal log of 30 messages, accessible via CX-Programmer |
| External connector | 40-pin MIL connector (connector not included) |
| Number of I/O connectors | 1 |
| Pulse outputs | None |
| Max. units per CJ1 CPU | 24 |
| Compatible terminal block (optional) | XW2G-40G7-E (screwless, 24 V or line driver selection per channel, DIN rail or screw mounting) |
| Compatible cables (optional) | XW2Z-xxxK (100, 150, 200, 300, 500 cm) |
| Dimensions (H × W × D) | 95.4 × 31 × 83.6 mm |
| Compatible systems | CJ1-series PLCs |
