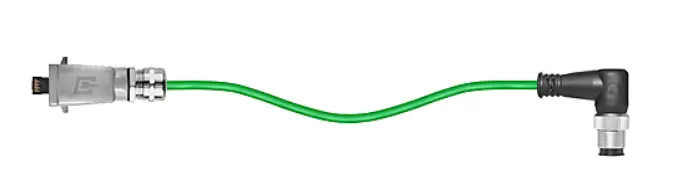

Weidmüller System Cable IE-C5DS4VG0005A25MCA-X — RJ45 IP67 to M12 D-Code, Cat.5/5e, 0.5 m. Available in stock — ships within 24 hours after payment.
Product overview
| Order No. | 1541300005 |
| Type | IE-C5DS4VG0005A25MCA-X |
| GTIN (EAN) | 4050118347500 |
| Connector 1 | RJ45 IP67 RockStar V05 Metal |
| Connector 2 | M12 D-Code IP67 angled pin |
| Cable length | 0.5 m (19.685 inch) |
| Category | Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B) |
| Cable colour | Green (RAL 6018) |
| Cross-section | 4×AWG 22/7 — 0.32 mm² |
| Shielding | SF/UTP — Aluminium foil + copper braid (85% overlap) |
| Characteristic impedance | 100 ± 5 Ω at 100 MHz |
| Operating voltage | 600 V |
| Operating temperature | −40 °C to +70 °C |
| Storage temperature | −40 °C to +80 °C |
| Sheath material | PVC |
| Net weight | 100 g |
| RoHS compliance | Compliant with exemption (6bI, 6c) |
| Condition | New — without original packaging |
Applications
- Industrial Ethernet connections in harsh environments (IP67 rated on both ends)
- Machine-to-machine communication in factory automation
- PLC and sensor/actuator networking via M12 D-code interfaces
- Robotics and motion control systems requiring flexible, shielded data cables
- Panel-to-field device wiring in manufacturing and process automation
Shipping
- Ships within 24 hours after payment
- Secure packaging for safe delivery
- Free delivery within Germany
Warranty & compliance
- 12-month warranty included
- Product is fully compliant with EU industry standards
- VAT invoice included with every order
(GPSR (EU) 2023/988): Contact us for Manufacturer/EU Responsible Party product safety contact details.
