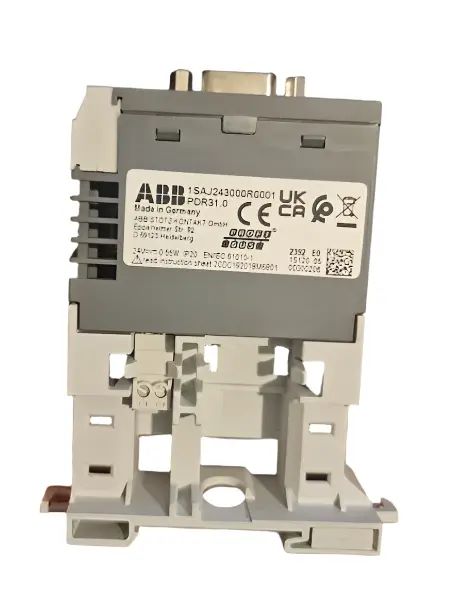

ABB PDR31.0 PROFIBUS Termination Unit + SMK3.0 Single Mounting Kit — Active Bus Termination, 24 V DC, IP20, DIN Rail Mount, IEC/EN 61131-2 — Bundle comprising 1× PDR31.0 (1SAJ243000R0001) and 1× SMK3.0 Mounting Kit (1SAJ929600R0001). Active termination unit required for stable PROFIBUS DP communication at the bus segment end, as the PDP32.0 module itself cannot provide active termination. Mounting kit enables direct DIN rail installation alongside the UMC100 Universal Motor Controller system.
Available in stock — ships within 3 days after payment.
Product overview
| Part number — Termination Unit | 1SAJ243000R0001 |
| Part number — Mounting Kit | 1SAJ929600R0001 |
| Product type | PDR31.0 + SMK3.0 (bundle) |
| EAN | 4013614499647 |
| Function | Active PROFIBUS DP bus termination |
| Compatible with | SMK3.0, PDP32.0, UMC100 |
| Fieldbus interface | PROFIBUS |
| Rated control supply voltage | 24 V DC |
| Power loss | Approx. 0.5 W |
| Degree of protection | IP20 |
| Mounting | DIN rail — UMC100.3/Single Mounting Kit |
| Dimensions (W × H × D) | 22.5 × 64 × 59 mm |
| Net weight | 0.03 kg |
| Standards | IEC/EN 61131-2 |
| RoHS compliance | Yes — EU Directive 2011/65/EU |
| Condition | New — without original packaging |
Applications
- Active bus segment termination in PROFIBUS DP networks using ABB SMK3.0 / PDP32.0 modules
- Motor control systems built around ABB UMC100 Universal Motor Controllers
- Industrial automation cabinets requiring compact DIN rail-mounted fieldbus accessories
- Process and factory automation installations with PROFIBUS DP communication infrastructure
Shipping
- Ships within 3 days after payment
- Secure packaging for safe delivery
- Free delivery within Germany
Warranty & compliance
- 12-month warranty included
- Product is fully compliant with EU industry standards
- VAT invoice included with every order
(GPSR (EU) 2023/988): Contact us for Manufacturer/EU Responsible Party product safety contact details.
