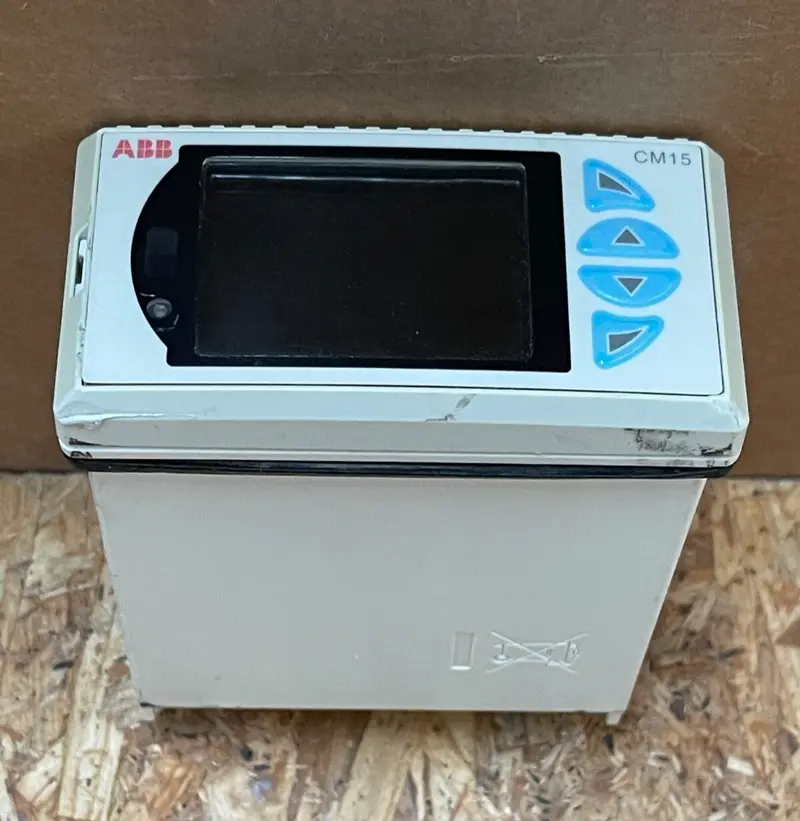

ABB – CM15/000U0E0/STD – ControlMaster CM15 Universal Process Indicator

Main Features

• Display: / DIN full‑color TFT screen delivering crisp, real‑time process indications with intuitive text‑based menu navigation

• I/O Capabilities (Basic Version):

  • universal analog inputs (thermocouple, RTD, mA, V, frequency, digital)

  • analog retransmission output (programmable – mA)

  • relay output (SPDT,  A @  VAC)

• Functional Flexibility: Supports totalization, level-to-volume conversion, pulse counting, math, logic, alarms, timers—expandable with optional plug‑in modules

• Connectivity Options: Base infrared (IrDA) port; can be upgraded with Modbus RTU, Modbus TCP, Ethernet, PROFIBUS via plugin modules

• Durability: Front panel rated to IP / NEMA X; chassis back-up to IP—ideal for industrial environments

• Power Supply: – V AC (standard); optional – V DC variant available

• Environmental Specs: Operating range – °C, –% RH (non‑condensing); EMC compliant per IEC

• Physical Dimensions:  ×  mm panel cut‑out; unit depth approx.  mm; weight ~. kg
